3d step model for Hailo-8 M.2 Key M 2230

General Discussion
1

Hi there,

for mechanical/pcba integration in our product I am looking for a 3d step model of the above mentioned product. Can you please provide that?

Previous posts and documentation resources unfortunately do not provide the above product.

Thank you in advance.

2

Welcome to the Hailo Community!

The Hailo-8 M.2 Key M module is not available in the 2230 form factor.

You can download the 3D files from the Documentation section of the Developer Zone. In the Find a Document search box, enter “3D”. The ZIP file contains STEP files for the 2242 and 2280 variants.

Please also note that we offer several module configurations designed to help ensure product availability when certain components are in short supply. The corresponding 3D files for these configurations are provided in separate ZIP files.

3

Hello again,

sorry for the issue, I was wrong.

I was meant to ask for the A+E key module. Do you have a step file for that variant?

4

Yes, the 3D model for the Hailo-8 M.2 Key A+E is available in the Documentation section of the Developer Zone.

In the Find a Document search box, enter “3D” . There are two configurations available, so be sure to download both ZIP files.

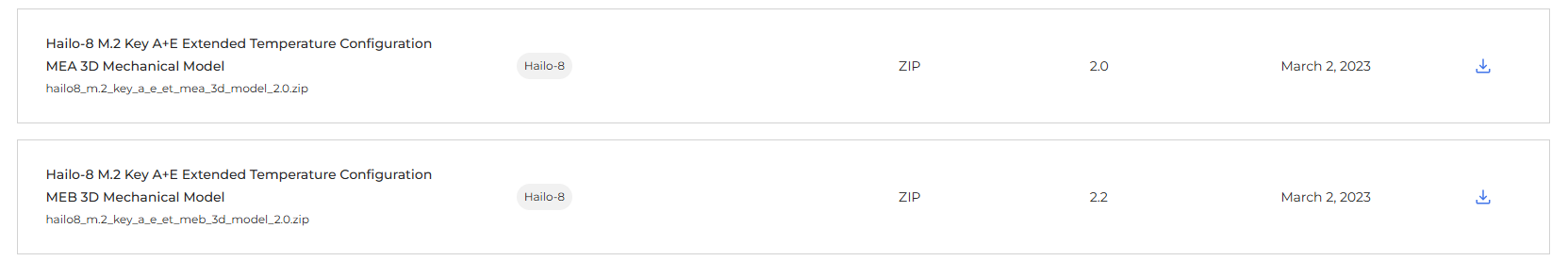

Hailo-8 M.2 A+E 3D model
Hailo-8 M.2 A+E 3D model1663×277 20.9 KB

Please let me know whether you can see the files, as I’m not certain you currently have access to them.

5

Thank you for your hint.

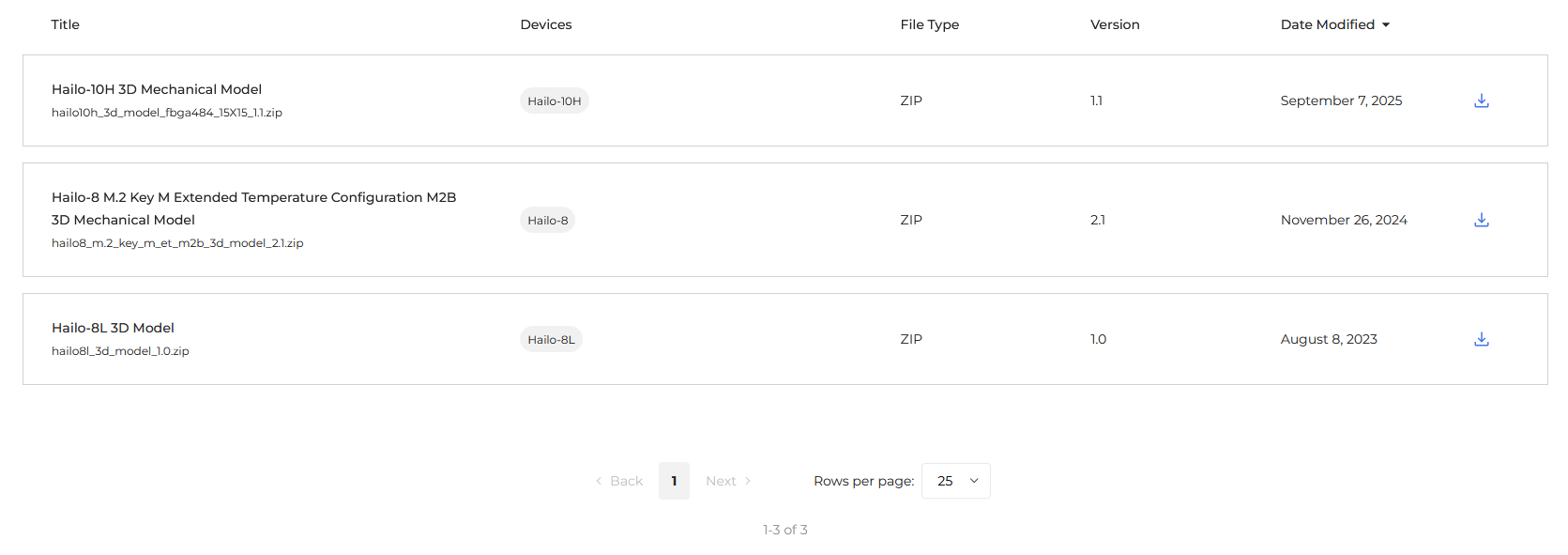

Unfortunately, I still can not find the files. After typing 3d in the document search box, only the following results appear:

grafik
grafik1671×591 32.5 KB

Can you please give me access to the A + E model?

Thanks in advance

6

I am working with my colleagues to make them available. It will take a few more days.

7

Hello @Klaus_Koschinsky ,

do you have any updates for me on this topic.

We are starting mechanical integration shortly and would be happy to receive the 3d model.

Thank you in advance.

8

Hello @Klaus_Koschinsky ,

when do you think you can provide us with the step-model of the 2230 A+E Hailo-8 module?

Thanks in advance,

Greetings,

Stefan

9

Hello @Klaus_Koschinsky ,

kindly update us on the availability of the Hailo-8 A+E 2230 step model. We are right in the middle of design-in and would be happy to have the 3d files.

thanks in advance,

Greetings,

Stefan

10

All Hailo-8 M.2 3D mechanical models are now available for download in the Developer Zone under Documentation for all Community users.

11

Hello @Klaus_Koschinsky ,

thank you for that info.

The model you provided on September 3 also contains other parts, see image:

grafik
grafik1719×1064 33.9 KB

I guess it is not possible from your side to just supply us with the native step file of the module without external components?

BR Stefan

12

Hello Stefan,

I recommend removing any components you don’t need using a tool such as FreeCAD. You can open the STEP file directly in FreeCAD, select the components you want to remove, and press Del . Then, select the complete board in the tree view and export it using the File menu.
